OAuth PKCE

Users can connect to OpenRouter in one click using Proof Key for Code Exchange (PKCE). Here's an example, and here's a step-by-step:

Step 1: Send your user to OpenRouter

Send your user to https://openrouter.ai/auth?callback_url=YOUR_SITE_URL

  • You can optionally include a code_challenge (random password up to 256 digits) for extra security.
  • For maximum security, we recommend also setting code_challenge_method to S256, and then setting code_challenge to the base64 encoding of the sha256 hash of code_verifier, which you will submit in Step 2. More info in Auth0's docs.

Example URLs

  • OAuth without code challenge: https://openrouter.ai/auth?callback_url=YOUR_SITE_URL

  • With code challenge (Plain method): https://openrouter.ai/auth?callback_url=YOUR_SITE_URL&code_challenge=5f6525766c064480ac25bd493d121377e6b57d2fa52c0245fbbd51e9&code_challenge_method=plain

  • With code challenge (S256 method, Recommended): https://openrouter.ai/auth?callback_url=YOUR_SITE_URL&code_challenge=17T2L7LU0IJwCoMiyYkRjTGk4b73xzc309jM2t--AfA&code_challenge_method=S256

Step 2: Exchange the code for a user-controlled API key

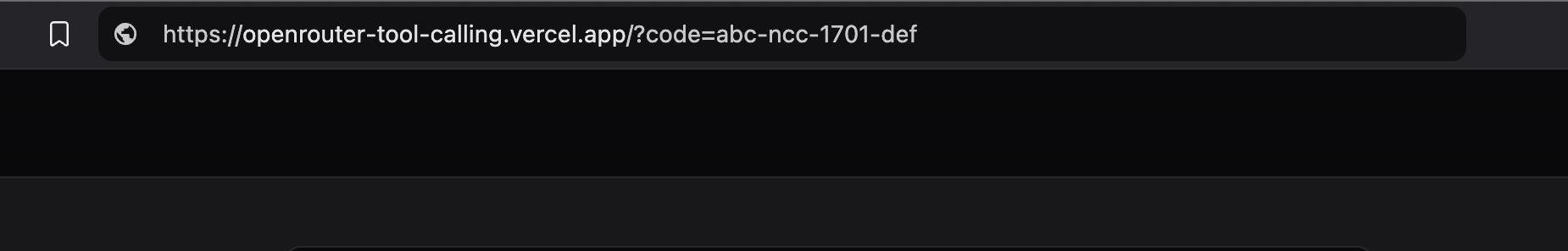

Once logged in, they'll be redirected back to your site with a code in the URL. Make an API call (can be frontend or backend) to exchange the code for a user-controlled API key. And that's it for PKCE!

  • Look for the code query parameter, e.g. ?code=....
fetch('https://openrouter.ai/api/v1/auth/keys', {
  method: 'POST',
  body: JSON.stringify({
    code: $CODE_FROM_QUERY_PARAM,
    code_verifier: $CODE_VERIFIER, // Only needed if you sent a code_challenge in Step 1
    code_challenge_method: $CODE_CHALLENGE_METHOD, // Only needed if you sent a code_challenge_method in Step 1
  }),
});

Step 3: Use the API key

A fresh API key will be in the result under "key". Store it securely and make OpenAI-style requests (supports streaming as well):

fetch("https://openrouter.ai/api/v1/chat/completions", {
  method: "POST",
  headers: {
    "Authorization": `Bearer ${OPENROUTER_API_KEY}`,
    "HTTP-Referer": `${YOUR_SITE_URL}`, // Optional, for including your app on openrouter.ai rankings.
    "X-Title": `${YOUR_SITE_NAME}`, // Optional. Shows in rankings on openrouter.ai.
    "Content-Type": "application/json"
  },
  body: JSON.stringify({
    "model": "openai/gpt-4o",
    "messages": [
      {"role": "system", "content": "You are a helpful assistant."},
      {"role": "user", "content": "Hello!"},
    ],
  })
});

You can use JavaScript or any server-side framework, like Streamlit. The linked example shows multiple models and file Q&A.

Appendix: Generating code_challenge for S256 code_challenge_method

In JavaScript, you can use crypto API to generate a code challenge for the S256 method:

export async function sha256CodeChallenge(input: string) {
  return crypto.createHash('sha256').update(input).digest('base64url');
}
// ...

const generatedCodeChallenge = await sha256CodeChallenge(code_verifier);

// ...

Error Codes

  • 400 Invalid code_challenge_method: Make sure you're using the same code challenge method in step 1 as in step 2.
  • 403 Invalid code or code_verifier: Make sure your user is logged in to OpenRouter, and that code_verifier and code_challenge_method are correct.
  • 405 Method Not Allowed: Make sure you're using POST and HTTPS for your request.
